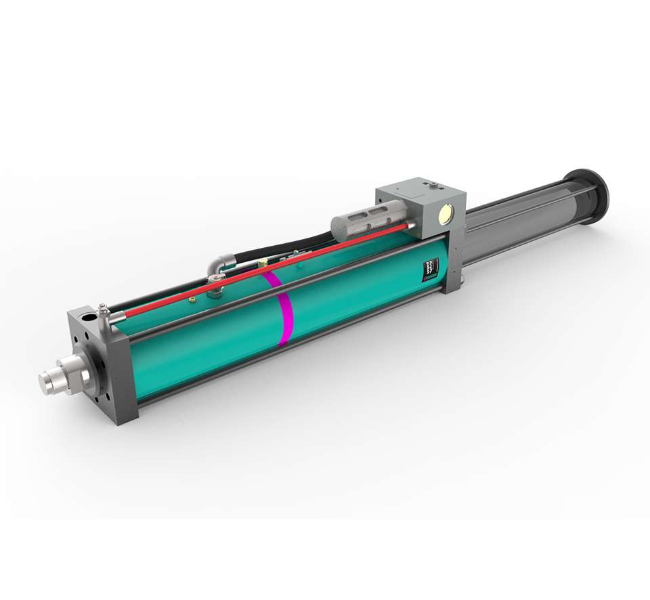

Pneumohydraulic Cylinder
The pneumo-hydraulic cylinders are able to offer excellent performance, combined with maximum maneuverability. They consist of a pneumatic cylinder combined with a pneumo-hydraulic pressure booster, which allows to better manage the approach or closing stroke of the mold and the pressing phase.
These systems operate fast cycles in total safety, with the minimum possible acoustic impact: our technicians develop customized pneumo-hydraulic cylinders to meet your specific needs and a wide range of applications.
“We In many of our solutions we often use pneumatic-hydraulic cylinders, especially where we need to get more force without losing speed..”
Ashot Daveyan
Use and benefits of pneumo-hydraulic cylinders
Pneumo-hydraulic cylinders, implemented in industrial production systems, offer some concrete advantages: first of all high performance, which helps to improve productivity, with thrust force up to 750 kN; secondly great manoeuvrability, this also translates into an application flexibility, guaranteed by our R&D processes; finally, in limiting the noise caused by use and in the extreme safety, verified by our internal technical office during the project and construction phase.
Typical Industry Applications for Hydra-Pneumatic Cylinders.
Hydropneumatic cylinders find use in a wide range of production applications, such as Part insertion and assembly, Material piercing, Clinching, Staking, Drawing, Marking, Cutting, Pressing, Folding, Riveting

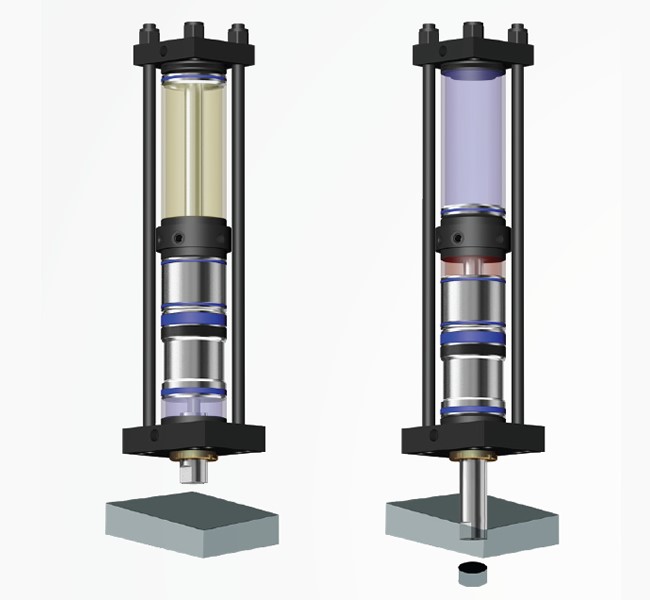

Hydra-pneumatic cylinders utilize valves to control their motion. They have one four-way valve to control approach and retract motion, and one four-way valve to control oil pressure intensification. This design combines the advantages of pneumatic and hydraulic cylinders without any of the disadvantages (e.g., excess heat and noise, space limits, or risk of leaks).
